Step 3: Attaching the Collet

Procedure
  1. Lightly apply grease to the top portion () on the outside of the collet.

    A thin application of grease is sufficient. Do not apply excessively.

    MEMO Be careful not to allow grease to get into the grooves on the sides of the collet.
    DWX-43W_replace_collet_05
  2. Insert the collet () into the spindle and rotate it in the direction shown in the figure.

    Rotate the collet by hand until it no longer naturally falls.

    DWX-50_DWX-4_Collet_01
  3. Attach the 0.3 N·m sleeve onto the torque screwdriver.
    IMPORTANT

    Be sure to use the 0.3 N·m torque screwdriver sleeve. Failing to do so may lead to a loose collet during milling, which will affect the milling quality and damage the collet.

    TorqueDriver_Sleeve_03Nm
  4. Attach the collet attaching/detaching jig onto the torque screwdriver with the sleeve attached.
    DWX-53DC_Collet_Tighten_01
  5. Use the torque screwdriver to retighten the collet.

    Align the collet with the groove in the collet attaching/detaching jig. Tighten the screws until turning the handle of the torque screwdriver no longer turns the screw bit.

    DWX-53DC_ColletRetighting_1

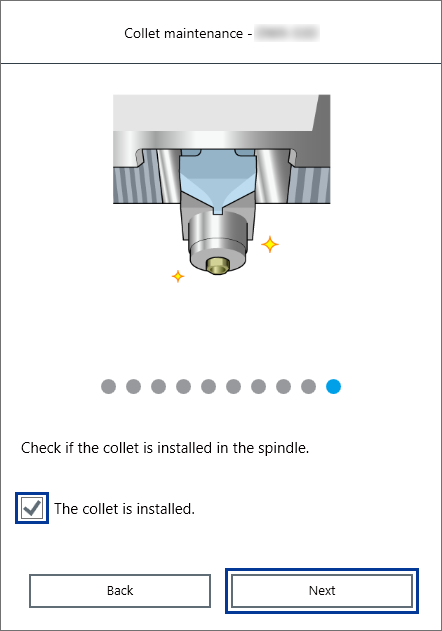

  6. Confirm that the collet is installed in the spindle, and then click Next.
    VPanel_collet_maintenance_check
  7. Attach the dust-proof cover to the milling area.
    MEMO

    Attach the dust-proof cover so the handle is in the upper-right corner. Check that the magnets on the edge of the cover attach to the mounting frame.

    DWX-53DC_dust-proof_cover_close
  8. Close the milling area cover.

    Collet maintenance is complete when the spindle unit moves to its original position and The operation is complete. is displayed.
