Checking the State of the Marking Pin

MPX-90 Head Manager indicates the amount of marking pin usage.

When the indicator is shown in red, replace the head with a new one. Even when the indicator is not shown in red, if the imprint quality is not satisfactory or the unevenness of the imprinted image persists, replace the head with a new one.

Procedure
  1. Start MPX-90 Head Manager.

    • Windows 11

      1. Click Start.
      2. Click All apps - MPX-90 Head Manager.

    • Windows 10

      1. Click Start.
      2. Click MPX-90 Head Manager - MPX-90 Head Manager.
    MPX-90 Head Manager starts.
  2. Switch on the power to the machine.
    Switching On the Power

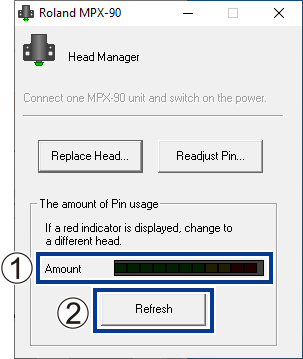

    MPX-90_HeadManager_top
    The amount of marking pin usage is indicated in this window. The level indicator increases little by little as the pin is used to strike the material. The rate of increase varies depending on the material being imprinted. When the indicator is shown in read, it is time for replacement of the head.
    This refreshes the window to display the latest information.
