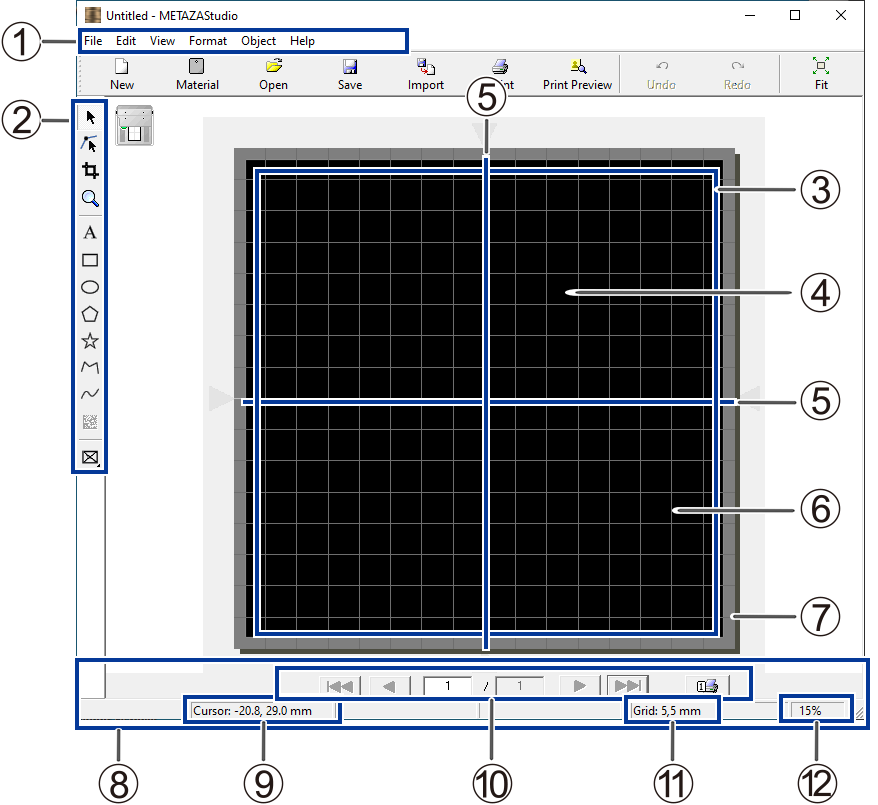

METAZAStudio Window

No.	Name	Overview
	Menu bar	Runs the various commands for METAZAStudio.
	Toolbar	The toolbar is provided with buttons for running METAZAStudio commands such as [Material] and [Open].
	Table	The unit's table is shown here. The scale displayed represents the actual scale marks on the table.
	Work area	This is the area in which imprinting is possible. The workpiece size (imprint area) set with METAZA Driver is shown here.METAZA Driver Settings
	Center line	This indicates the vertical center location of the window.
	Grid	This is a grid of lines displayed in the work area. It serves as a guide for positioning images and text.
	Margin	This blank area lies inside the edges of the work area and where no imprinting is performed. You can change the size of the margin by going to the File menu and selecting Preferences. Initial setting: 1 mm Step 1: Determine the Shape and Size of Material Step 1: Set the Imprint Area
	Status bar	This shows the present location of the cursor, information about the shape, the grid, and the view magnification. Moving the pointer to a toolbar button or pointing to a menu command makes a brief explanation of the button or command appear at the left edge. Shape information appears when you click an on-screen object (image, text, or shape).
	Present cursor position	This indicates the present location of the cursor. The position at the center of the window (where the two center lines intersect) is (0, 0).
	Page feed bar	When you have entered data into a variable field, use this to specify the page (record) that is displayed in the window.
	Grid pitch	This displays the pitch (spacing) of the grid lines. Right-clicking this displays menu items related to the appearance of the grid.
	View scaling factor	This displays the present scaling factor for the window view. Right-clicking this displays a menu that lets you change the view scaling factor.

Menu bar

Runs the various commands for METAZAStudio.

Toolbar

The toolbar is provided with buttons for running METAZAStudio commands such as [Material] and [Open].

Table

The unit's table is shown here. The scale displayed represents the actual scale marks on the table.

Work area

This is the area in which imprinting is possible. The workpiece size (imprint area) set with METAZA Driver is shown here.METAZA Driver Settings

Center line

This indicates the vertical center location of the window.

Grid

This is a grid of lines displayed in the work area. It serves as a guide for positioning images and text.

Margin

This blank area lies inside the edges of the work area and where no imprinting is performed.

You can change the size of the margin by going to the File menu and selecting Preferences.

Initial setting: 1 mm

Step 1: Determine the Shape and Size of Material Step 1: Set the Imprint Area

Status bar

This shows the present location of the cursor, information about the shape, the grid, and the view magnification. Moving the pointer to a toolbar button or pointing to a menu command makes a brief explanation of the button or command appear at the left edge. Shape information appears when you click an on-screen object (image, text, or shape).

Present cursor position

This indicates the present location of the cursor. The position at the center of the window (where the two center lines intersect) is (0, 0).

Page feed bar

When you have entered data into a variable field, use this to specify the page (record) that is displayed in the window.

Grid pitch

This displays the pitch (spacing) of the grid lines. Right-clicking this displays menu items related to the appearance of the grid.

View scaling factor

This displays the present scaling factor for the window view. Right-clicking this displays a menu that lets you change the view scaling factor.
