Step 2: Import the Image

Import an image (such as a photograph or drawing) to be imprinted.
MEMO With METAZAStudio, you can only import data in the following file formats.
  • JPEG format
  • BMP (bitmap) format
  • AI, EPS format (only data saved with Illustrator version 7.0/8.0 or CorelDraw version 7/8)
MEMO

Illustrator and CorelDraw files are subject to a number of limitations. For details, see the online help for METAZAStudio.

  • METAZAStudio online help ("Hints and Tips" > "Reusing Existing Data")
Procedure

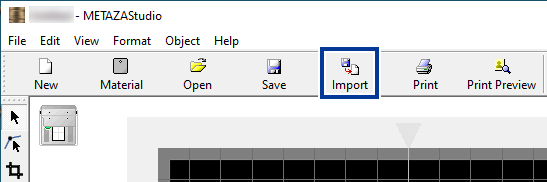

  1. Click icon_METAZAStudio_Import.

    The Import window appears.

    METAZAStudio_Import

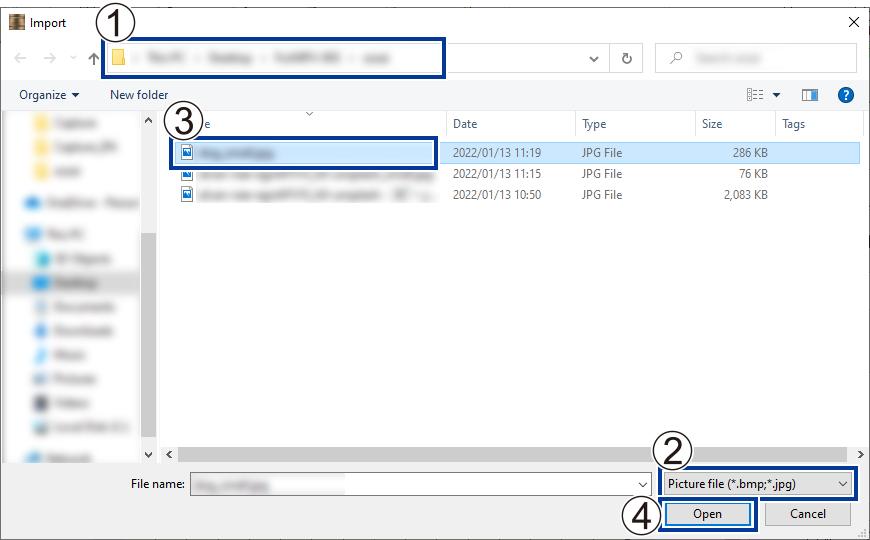

  2. Import an image to be imprinted.
    1. At Look in, select the location of the file.
    2. Under Files of type, select either Picture file or Adobe Illustrator file.
    3. Select the file you want.
    4. Click Open.
    METAZAStudio_Import_Image

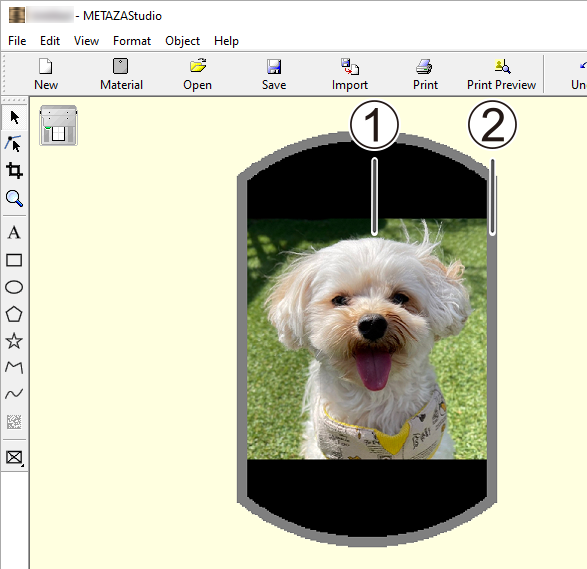

    The specified image is imported and displayed in the imprint area () and aligned within the margins you have set ().

    You can arrange the imported image by changing its location, size, and angle as well as by adding a frame.Tips and Tricks for Image Layout

    METAZAStudio_Import_Image_01
    IMPORTANT When imprinting on material that has holes, take care to ensure that the image is not laid out over the holes. If you include the holes in the imprint area (), the marking pin might hit the edge of the material and cause damage.

    MPX-90S_PrintPreparation_memo_2
    MPX-90S_PrintPreparation_memo_3

    		 MPX-90S_PrintPreparation_memo_4
    The imprint area lies over a hole. No margins are present at the edges of the material. The imprint area extends beyond the material.
