Automatically Correcting the Cutting Position

This section explains how to correct positions such as the milling origin by comparing values calculated from the sensor with the actual values.

Required items
DWX-53DC_DetectionPIN_ForTable

Detection pin

 Automatic_correction_jig

Automatic correction jig

 Cloth_for_care

Cloth for care
Procedure
  1. Show VPanel.
    Displaying VPanel

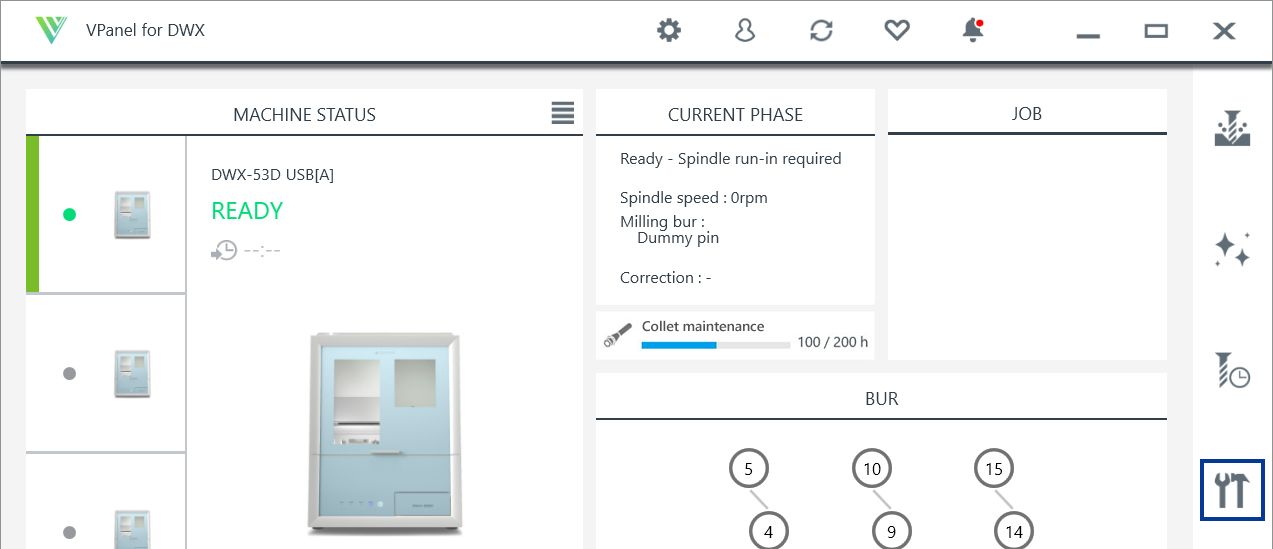

  2. Click Icon_VPanel_MachineSetting.
    SettingsTab

    The Machine settings - DWX-53D window will appear.

  3. On the Maintenance tab, click Automatic correction.
    VPanel_MachineSetting_Maintenance_AutomaticCorrection

    The Automatic correction - DWX-53D window is displayed.

  4. Follow the on-screen instructions to perform automatic correction.

    After cleaning the machine, attach the detection pin and automatic correction jig and perform automatic correction.

    Perform cleaning and installing parts according to the following procedures.
