Step 2: Activating the Ink

After ink filling has been completed, activate the ink using the Ink ID on the ink bottle label.

Procedure
  1. Access http://124.71.46.129:8089/user/#/home.

    The INK AUTHORIZATION window appears.

    MEMO

    To change the display language, select from the pull-down menu at the top right of the window.

    InkAuthorization
  2. Obtain the Ink authorization number.
    1. Enter the Board number.

      The Board number can be checked by starting Roland DG BF-16 Driver.

      Click Advanced - Version, and then make a note of the Motherboard Serial Number.

      SerialDriverInput
    2. Enter the Motherboard Serial Number in the Board number field in the INK AUTHORIZATION window.
    3. Enter the ink bottle Ink ID in the Ink number field.
      MEMO

      The first alphabet letter of the Ink ID indicates the ink color.

      INK_ID
    4. Click Get authorization number.

      The Ink authorization number is acquired.

      InkAuthorization2
  3. Enter the Ink authorization number into Roland DG BF-16 Driver.
    1. Start Roland DG BF-16 Driver.
    2. Click Advanced - Advanced Settings - Ink Encryption.

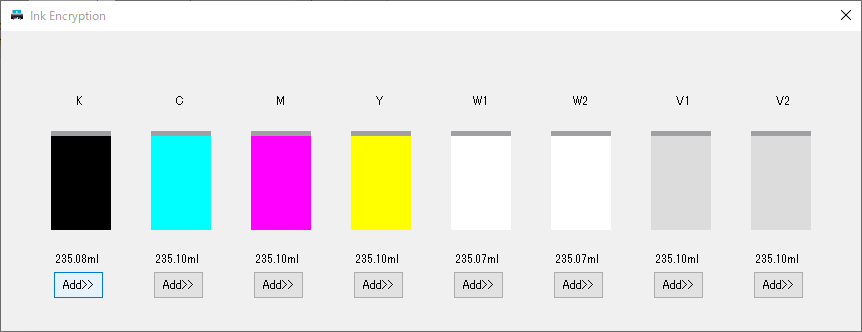

      The Ink Encryption window appears.

      InkEncry
    3. Click Add>>.
      MEMO

      Click Add>> for the ink tank color just filled.

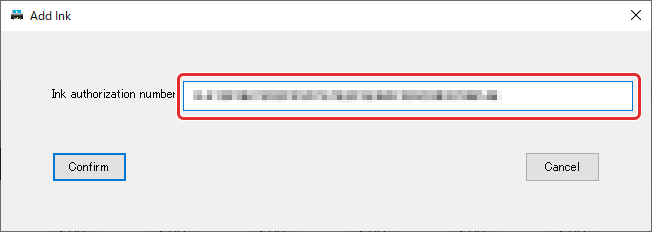

    4. Enter the Ink authorization number that was acquired in Step 2 in the Add Ink window.
      InputActivationCode
    5. Click Confirm.
      The Add ink confirm window appears.
    6. Click Confirm.
    7. When the Added successfully! Reset ink successfully window appears, click Confirm.
      When the Ink licensing success window is displayed, ink activation is complete.
  4. Repeat Steps 2 and 3 to activate all other inks.
    MEMO

    Ink activation must be performed for each ink tank.
