Enclosing an Image in a Frame

You can change the arrangement of imprint data by placing a frame around an image.

In METAZAStudio, a number of different types of frames are preregistered in the Library.

You can also register new frames. For detailed information about the procedures, see the online help for METAZAStudio.

METAZAStudio online help ("Hints and Tips" > "Making Use of Library")

Procedure

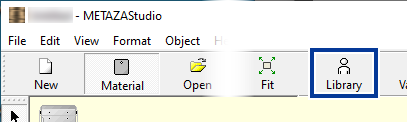

  1. Click icon_METAZAStudio_Library.
    METAZAStudio_Library

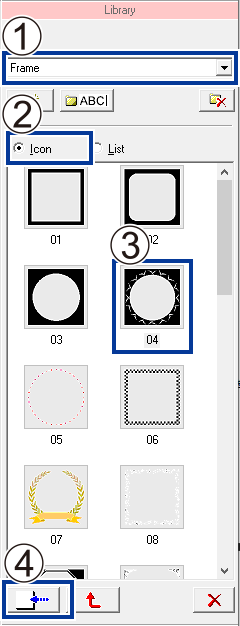

    The Library window appears.
  2. Insert a frame.
    1. Select Frame under Group.
    2. Select [Icon].
    3. Click the frame to insert.
    4. Click icon_METAZAStudio_Library_approve.

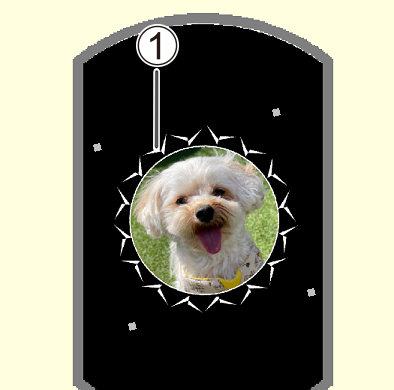

      A frame is inserted into the image.
    METAZAStudio_Library_Frame

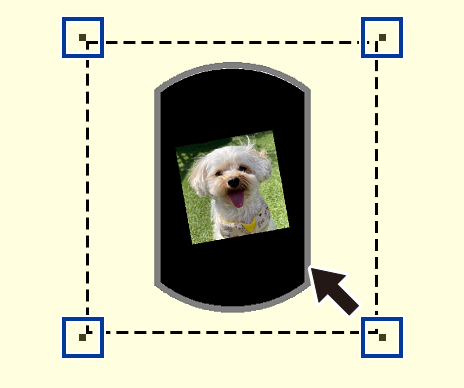

  3. Adjust the size and location of the frame.

    When the size of the frame is larger than that of the material, handles appear on the outside of the imprint area. Adjust the frame in the same way as adjusting images.


    METAZAStudio_Library_Frame_01



    METAZAStudio_Library_Frame_02




    • : Frame
      •
