Tiling an Image

When printing an image that will not fit on the width of the roll media, or when printing divided onto multiple media (objects to be printed on) with a flat-bed printer, configure the tile position and size settings.

Procedure
  1. Use one of the methods below to open the Job Settings window.
    • Double-click the job to set.
    • Right-click on the job to set, then click Edit Design - Job Settings .
    • With a job selected, click VW7_JobMenu1 on the left side of the job tool area, and then click VW7_CustomizeJob Settings .
  2. Click Clip and Tile.
    The image in the layout area is zoomed in on.
  3. In Tiling, select one of the tiling methods shown below.

    • Manual Tiling

      Sets the number of tiles and the tile size. This print data is tiled by a blue vertical line according to the media size. Next adjust the position so that a face is not divided.
      VW7_Tiling-LayoutArea

      1. Align the pointer with the tiling line (blue line) in the layout area preview.

        MEMO Align the pointer with the border line (red line) and drag to the inside to clip the image and change the part that is printed.
      2. Drag the tiling line and move it to the location where you want to divide the image.
        VW7_Tiling-LayoutArea-Slide

        If you want to further divide the image horizontally, align the pointer with the red line on the right edge or left edge and drag the line.

      3. To divide the image divided vertically also, align the pointer with the red line at bottom edge or top edge of the preview and drag the line.

    • Tile Size
      Divides the job evenly at the specified size with the origin at the upper-left corner of the media. The tiles on the right and bottom edges may be smaller than the specified size.
      BlackCastle

      Select the tile size from Size. If you want to set a size other than the standard sizes, select CustomCUT or CustomROLL, and then enter the width and height.

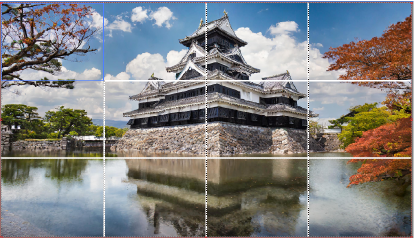

    • Number of Tiles
      Divides the job into the number of tiles specified with Horizontal and Vertical. All tiles have the same size.
      BlackCastle2
      Select the Place alternated check box to rotate the tiles in even-numbered columns 180 degrees. This will make the seam color difference less visible when the tiles are pasted together.
      LionSample_
    MEMO You can show or hide each tile by right-clicking it in the layout area. Hidden tiles are not printed. However it is not possible to set so that all tiles are not printed.
    RightClick
  4. Click VW7_Layout Layout.
    You can use the layout area to check how the tiled image is arranged on the media.
    MEMO To arrange the layout, drag the preview of the tiled image directly or click VW7-ICON_relocation or VW7-ICON_alignment.
  5. Click OK.
    You are returned to the main window.
