Visually Selecting the Color Settings: Quick Setup

Visually select the color setting from seven color settings using Brightness and Vibrancy.
VW7_QuickSetup
Procedure
  1. Perform the operation shown below according to what is being set.
    • Job
      • Double-click the job to set.
      • Right-click on the job to set, then click Edit Design - Job Settings .
      • With a job selected, click VW7_JobMenu1 on the left side of the job tool area, and then click VW7_CustomizeJob Settings .

      The Job Settings window appears.

    • Queue folder: Click VW7_Customize for the queue folder.

      The Queue Properties appears.

  2. Click VW7-ICON_ColorSetting Color Management.
  3. Click Quick Setup... under Color Settings.

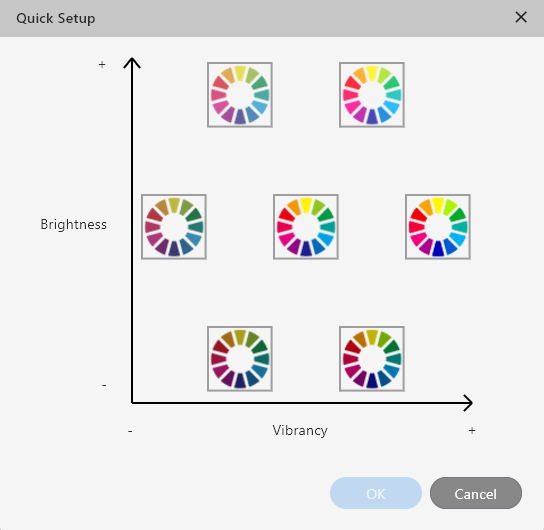

    A graph is displayed in which the seven color settings are arranged.
  4. Select the desired Color Management setting.
    The selected Color Management setting will be surrounded by a blue border.
  5. Click OK.
    • Any changes made in Job Settings will be applied, and you will be returned to the main window.
    • When changes are made in Queue Properties:
      • When a message for saving the printing settings appears, click OK.

      • To apply the changes to a job already in the queue folder, right-click on the job and click Copy/Paste Setting Value - Apply Current Queue Settings. The changes are reflected in the layout area of the main window.
