CAUTION

Never touch the cutting carriage while output is in progress.
The cutting carriage moves at high speed. Coming into contact with the moving carriage may cause injury.


Referring to the Menu Flow Chart as you proceed will help the setting procedure go smoothly.

Procedure

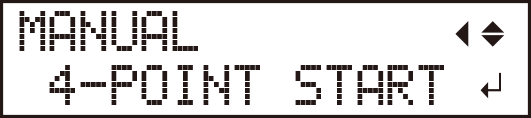

  1. Press the [Left ] key, and then press the [Down] key to select 4-POINT START.

    If using 3 crop marks, select 3-POINT START. The screen shown in the following figure is displayed.



  2. Press [ENTER].

    The screen shown in the following figure is displayed.



  3. Perform steps 3 to 13 in "Cutting in Tool Mode (2)."

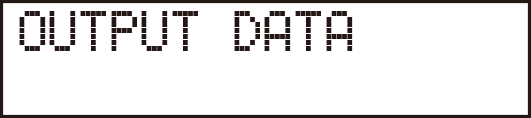

  1. When the screen shown in the figure below is displayed, send data from the computer.

    When the machine receives the data, it starts cutting.

  2. Remove the cut material.

    Remove the material to complete the cutting procedure.
