CAUTION

Never touch the cutting carriage while output is in progress.
The cutting carriage moves at high speed. Coming into contact with the moving carriage may cause injury.

Procedure

  1. Set the material size.

  2. Click .

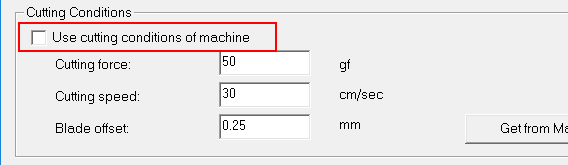

    If you want to change the cutting conditions, click Change, clear the Use cutting conditions of machine check box, and then enter the values.

  3. Click OK.

    The cutting data is sent to the machine. When the machine receives the data, it automatically reads the crop marks using a sensor, and then starts cutting.



    If the sensor fails to read the crop marks

    If the sensor fails to read the crop marks, the screen in the figure appears. If this screen appears, see "Crop Marks Cannot be Read." If this does not resolve the issue, refer to "Cutting in Tool Mode (1)," and then perform positioning in tool mode.

  4. Remove the cut material.

    This completes the cutting procedure.
