Select the media.

To use registered media, select the desired media from the list of available media. To use unregistered media, see "Setting Up New Sheet Media."

Setting Up New Sheet Media

Procedure
  1. Tap AP-640_Panel_Icon_SETUPSetup.

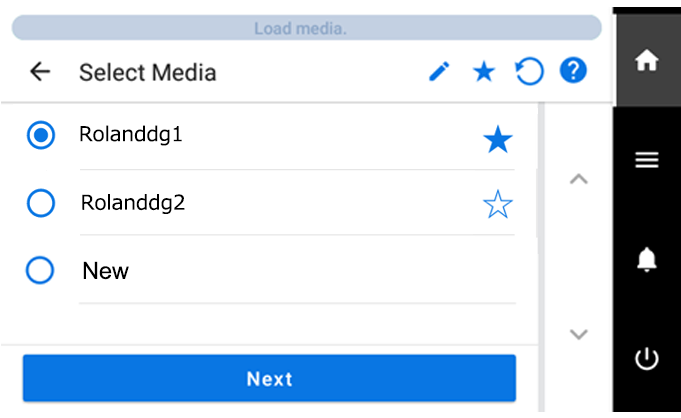

    The registered media is displayed in a list.
    RegiMedia
  2. Select the media name to use.
    MEMO
    • Tapping IconPen makes it possible to search the registered media by keyword.

      To reset the entered keyword, tap reset.

    • Tapping Favorite Display to the right of the media name will change the symbol to FavoriteDisplay2, and the media will be registered to Favorites.

      Tap the Favorites filter Favorite Display at the top of the operation panel to turn the filter on FavoriteDisplay2 and show only favorited media.

      Tap FavoriteDisplay2 to turn the Favorites filter off.

      Tapreset to turn the Favorites filter off ( Favorite Display ) and reset all keywords.

    • Keyword searching and the Favorites filter can be used at the same time.
  3. Tap Next.

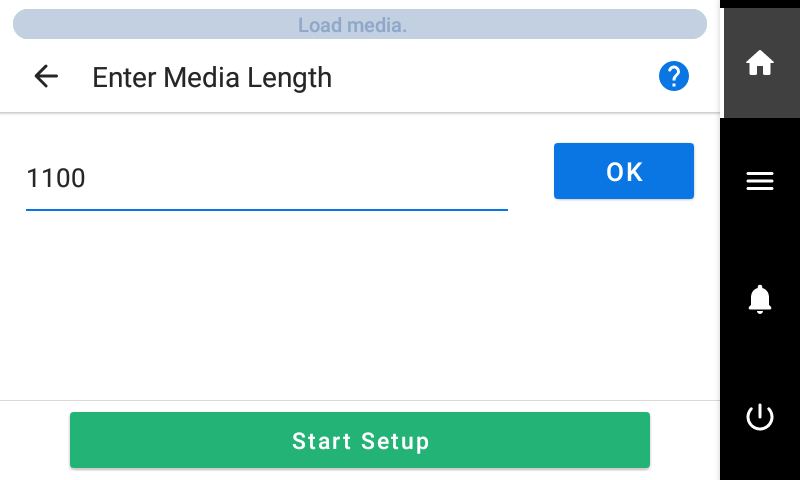

  4. Enter the length of the loaded media, and tap OK.
    ET-64L_Panel_Setup_MediaSize
    IMPORTANT Media longer than the entered media length will not be fed. However, this restriction will not be applied if "0" is entered. In such cases, pay close attention to the size of the print data to prevent the media from coming off during printing.
  5. Tap Start Setup.
    The cutting carriage moves and detects the width of the media and the positions of the media clamps. This operation is called initialization.
  6. When Printing Area (Width) screen appears, use the following procedure to configure the settings.
    MEMO The media selected in step 2 is media whose printing area was set manually when registered as new media. The printing area must be set manually each time, so the Printing Area (Width) screen appears.
    1. Tap Change.
      The Set the right edge of the printing area within the area specified by the pinch rollers. screen appears.
    2. Hold down AP-640_Panel_Icon_LEFT or AP-640_Panel_Icon_RIGHT to move the center of the blade (A) approximately 2 mm (0.08 in.) to the inside (B) from the left edge of the right pinch roller.

      VG3_MediaWidthSetting_manual_R

    3. Tap OK.
      The Set the left edge of the printing area within the area specified by the pinch rollers. screen appears.
    4. Hold down AP-640_Panel_Icon_LEFT or AP-640_Panel_Icon_RIGHT to move the center of the blade (A) approximately 2 mm (0.08 in.) to the inside (B) from the right edge of the left pinch roller.

      MediaWidthSetting_manual_L

    5. Tap OK.
      The set left and right positions are applied to the Printing Area (Width).
    6. Tap OK.
