2. Installing the Necessary Software from Roland DG Connect Hub

Use Roland DG Connect Hub to install the related software. After the software is installed, you can perform operations such as starting and updating the software from Roland DG Connect Hub.

The method introduced here for installing the software applies to the following versions. Even with the same version, the operation steps, button names, and window titles may differ depending on the OS build.
  • Windows 11: Version 24H2
  • Windows 10: Version 22H2
  • Mac: macOS 15.2
Procedure
  1. Start Roland DG Connect Hub.
    • Windows

      Click the Roland DG Connect Hub icon in the notification area.

    • Mac

      Click the Roland DG Connect Hub icon from the Dock.

    IMPORTANT

    When using Windows, if you have cleared the Launch Roland DG Connect Hub checkbox in the Roland DG Connect Hub setup wizard, start the software from the Start menu after setup finishes.

  2. Refer to the Master Initial Setting Guide to perform the following operations.
    https://downloadcenter.rolanddg.com/contents/software_parts/connect_info_en.html
    1. Create a Roland DG Connect ID.
      If you already have an ID, proceed to the next step.
    2. Configure the Connect Hub settings.
  3. In the main window, select the machine to use.
    MEMO

    If the printer to register cannot be detected, refer to the Roland DG Connect Help.https://support.rolanddg.com/hc/en-us/categories/6469527154585-Roland-DG-Connect

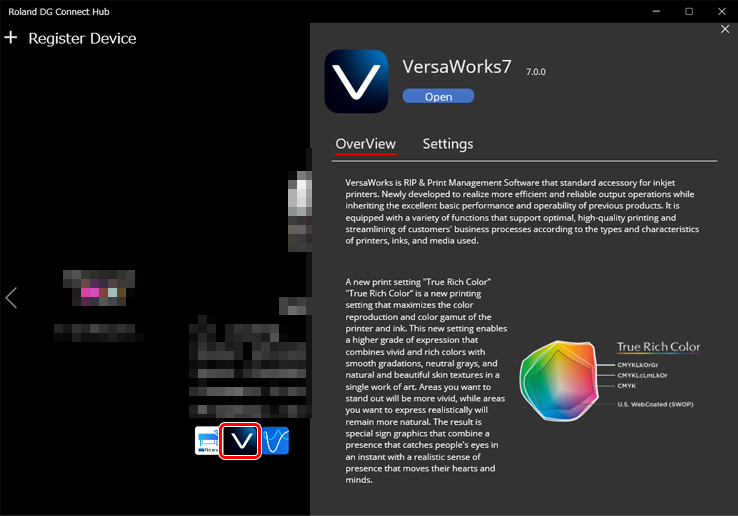

  4. Click the software icon.
    The sidebar is displayed on the right side of the window.
    Hub3
  5. Click Install.

    The software installation starts.

    To install multiple pieces of required software, click the icon for each piece of software in the same way.

    When all the software to use is installed, the procedure is complete.
