Specifying the Flat Table Position After Setup Completion
After the object to be printed on is set up, you can specify the movement destination of the flat table in advance. This action eliminates unnecessary table movement after setup, allowing printing to start immediately and reducing the time required to begin printing.
Procedimiento
- Set up the object to be printed on.
-
Tap
.
- Tap .
-

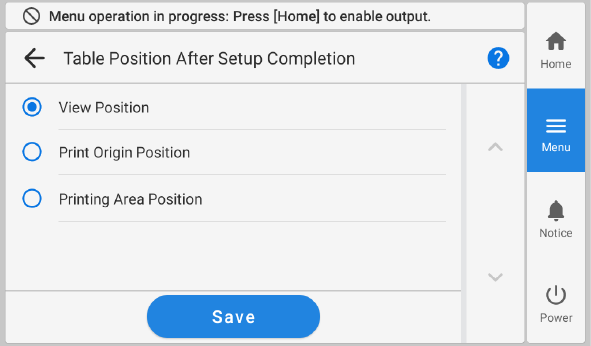

Select Posición de la mesa después de completar la configuración from the following.
Posición de la mesa después de completar la configuración Description Posición de vista After setup finishes, the flat table moves forward.
Posición de origen de impresión After setup finishes, the flat table moves to the print origin position. Use this option in print modes that reference the print origin. Posición del área de impresión After setup finishes, the flat table moves to the trailing edge of the printing area. Depending on the print mode,*1 the reference will be the trailing edge of the printing area, not the print origin, so the flat table moves to this trailing edge. *1 Such as during one pass multilayer printing of or . - Tap Guardar to confirm your entry.
-
Tap
to return to the home screen.
NOTA- Default setting: Posición de vista
