Speeding Up Output for Deep Objects

You can reduce the output time by shortening the irradiation distance of the ultraviolet light after printing.

IMPORTANT If this distance is too short, the ultraviolet light's irradiation time will also be too short, possibly preventing the ink from being cured. Be sure to try printing and check that the ink is cured.
MEMO
  • This setting is effective for objects that have high ink adhesion. Check the material of the object before printing.
  • Using primer and degreasing the object with anhydrous ethanol or isopropyl alcohol are also effective methods for increasing the adhesion of the ink.
Procedure
  1. Tap Panel_Icon_Menu.
  2. Tap Preferences - Post-Scan Length.
  3. Tap Panel_Icon_Minus or Panel_Icon_Plus to set the irradiation distance of the ultraviolet light.

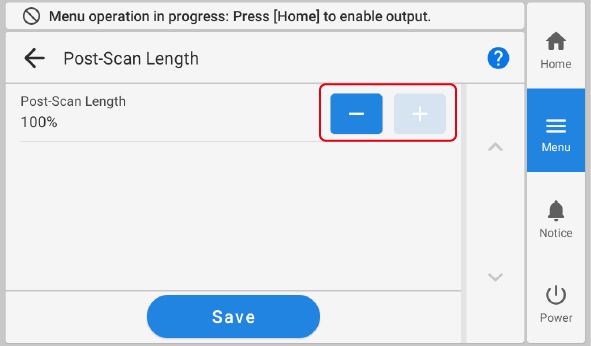

    IO_AfterScan
    The smaller the number, the shorter the irradiation distance of the ultraviolet light after printing.
    IMPORTANT

    You can change the irradiation distance of the ultraviolet light in increments of 5%.

  4. Tap Save to confirm your entry.
  5. Tap Panel_Icon_Home to return to the home screen.
    MEMO
    • Default settings: 100%
