Changing the Media Settings

Use the following procedure to change the media settings. These settings can only be changed for the media being set up.
Procedure
  1. Set up the media.
  2. Click AP-640_Panel_Icon_MENU.
  3. Click List of Media Settings.

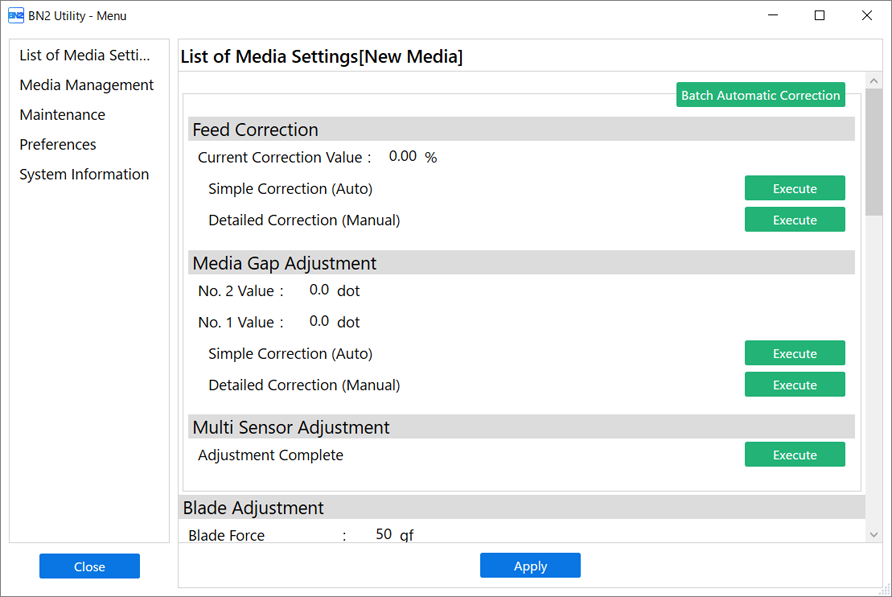

    The media setting values are displayed in a list.

    MediaSettings_Utility
  4. Click the setting to change to move to the window for editing this setting.
    The media settings that can be changed are as follows.
    Menu itemReference page
    Batch Automatic Correction

    Performs Multi Sensor Adjustment, simple (automatic) correction for Feed Correction, and simple (automatic) correction for Media Gap Adjustment.

    Automatically Making Required Adjustments
    Feed CorrectionManual Adjustment: Reducing Horizontal Bands (Feed Correction)
    Media Gap AdjustmentManual Adjustment: Adjusting the Misalignment of the Ink Landing Position (Media Gap Adjustment)
    Multi Sensor AdjustmentCorrecting the Reading Sensor (Multi Sensor Adjustment)
    Blade AdjustmentFine-tuning the Cutting Conditions
    Print & Cut Position AdjustmentCorrecting the Misalignment of Printing and Cutting
    Cutting Distance CorrectionPerforming Distance Correction during Cutting
    Over CutCutting to Make It Possible to Cut Corners Attractively (Over Cut)
    Heater TemperatureSetting the Print Heater TemperatureSetting the Dryer Temperature
    Dry After PrintingDrying the Trailing Edge of the Printing Area on the Dryer
    Drying Time Per ScanUsing Hard-to-Dry Media
    Media Suction ForceUsing Media That Wrinkles Easily/Does Not Move Smoothly
    Printing Movement RangeSpeeding Up Output for Narrow Media
    Media Sticking PreventionUsing Sticky Media
  5. If you have changed a setting on the List of Media Settings window, click Apply.
  6. Click Close to return to the original window.
