9. Machine settings

Use this window to set the machine and perform maintenance operations.

General Tab

Configure the settings for the machine selected in the top window.

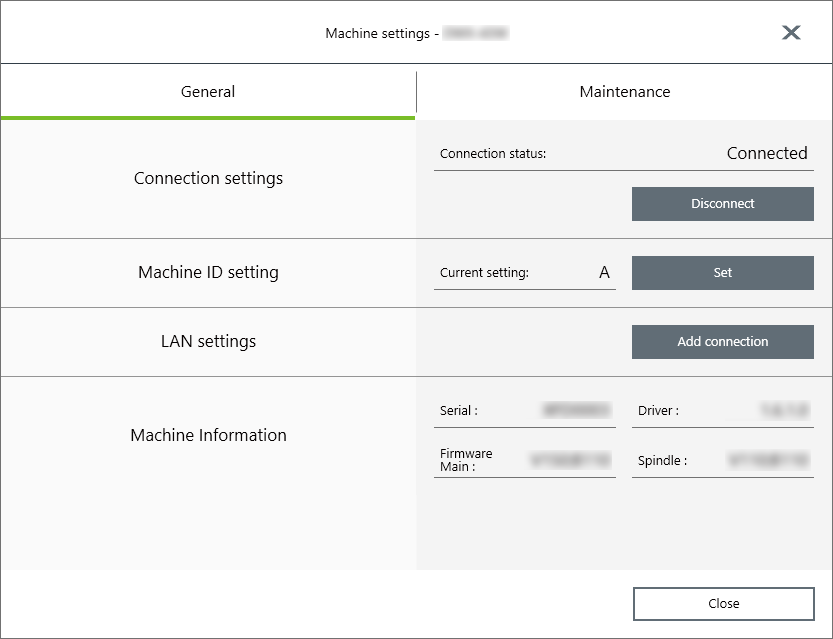

Vpanel_Setting_DWX-43W

Connection settings
Displays the current connection status. The information varies depending on the machine's connection status.
Machine ID setting
When multiple machines are connected to one computer, it's necessary to set IDs for the machines. Select the machine to use in the VPanel top window.

For detailed operation, refer to the Setup Guide of the model you are using.

DWX-43W Setup Guide
Initial setting: A
IMPORTANT To change an ID, be sure to follow the procedure explained in the Setup Guide.
LAN settings
Use this when connecting a computer and the machine with a LAN cable.

For detailed operation, refer to the Setup Guide of the model you are using.

DWX-43W Setup Guide
Machine Information

Serial: Serial number of the machine

Driver: DGSHAPE dental driver version

Firmware Main: Connected machine's main firmware version

Spindle: Connected machine's spindle firmware version

MEMO When you are signed in to DGSHAPE CLOUD with a DGSHAPE account, you can set the nickname of the machine. Nicknames can be used as identifiers for each machine when you are using multiple machines.

Maintenance Tab

On this tab, you can perform operations related to maintenance, including automatic correction of the machine and displaying system reports. When more than one machine is connected, the machine selected in the top window becomes the target for the operations. For detailed operations, refer to the User's Manual of the model you are using.

DWX-43W User's Manual

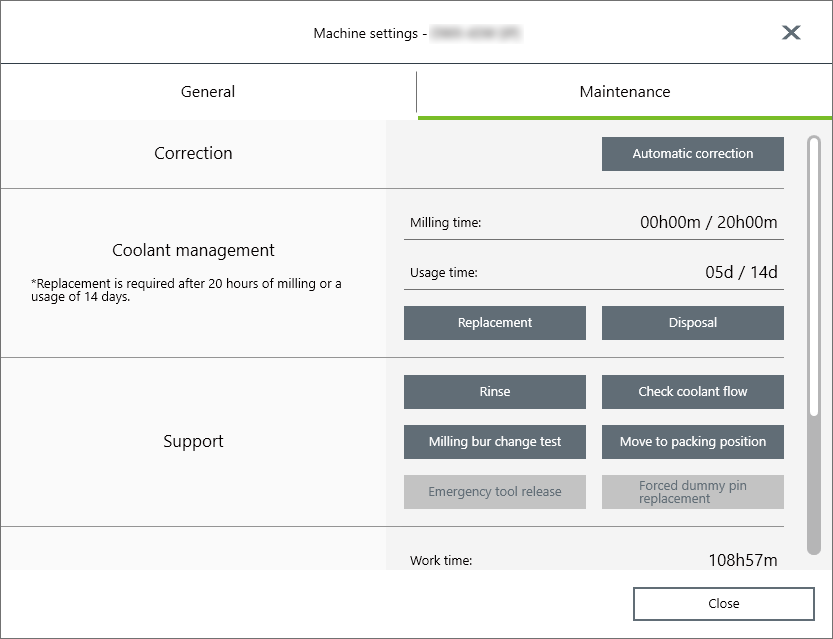

VPanel_for_DWX_DWX-43W_MachineSettings_Maintenance

Correction
Automatic correction
Correct the ATC magazine position or the rotary axis position.
Coolant management
Displays the time and days during which milling has been performed since the coolant was replaced.

A message prompting you to supply coolant is displayed here when the coolant tank is empty, such as when the machine is delivered and after the coolant is discarded.

Replacement / Fill
Replaces the coolant/fills the tank with coolant.

If the replacement time for the coolant is exceeded, a message prompting you to replace it is displayed in VPanel.

Disposal
Rinses the coolant lines running through the machine, and then drains the remaining fluid.

Remove the workpiece, milling burs, correction jigs, and other such items attached to the machine before performing this work.

Support
Rinse

To prevent milling waste from adhering to the inside of the machine, a regular flushing operation, which automatically cleans the inside of the machine once every 12 hours from the point the machine is turned on, is performed.

You can also click Rinse to perform flushing on demand.

Check coolant flow
Checks whether the coolant flow rate is appropriate.
Milling bur change test
While the machine is on standby, checks whether the collet can replace the dummy pin it is grasping with a milling bur for use in milling.
Move to packing position
Moves the rotary axis unit, ATC magazine, and spindle unit to the packing position. Remove the workpiece and the correction jig before performing this work.
Emergency tool release
This button is enabled when the machine is turned on while a cover is open. Use this button if the initial operations cannot be performed because, for example, the milling bur is caught on the workpiece.
Forced dummy pin replacement
This function makes the spindle grasp the dummy pin when an error occurs during automatic correction. This button is enabled when operation is required.
Report/Log
Show
Displays the error history as well as system information such as the firmware version and the total operating hours.
Get
Obtain a file in which the information of the various logs is collected.
Spindle
Work time
Displays the work time of the spindle. When the spindle unit is replaced, Work time is reset.

For spindle unit replacement time guidelines, refer to the User's Manual of the model you are using.

Spindle run-in
Performs spindle run-in (warm-up), which stabilizes the rotation of the spindle.
