2. CURRENT PHASE
Displays the operation status, spindle rotating speed, milling time, etc.

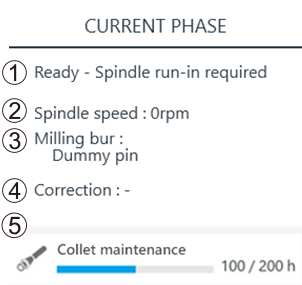

* The following image is an example. The notations and layout will vary depending on the model used.
: Displays the status of the connected machine.
: Displays the spindle rotating speed of the connected machine.
: Displays the name and work situation of the milling bur currently in use.
- If "13h00m/15h00m" is shown, "13h00m" is the work time, and "15h00m" is the service life of the milling bur.
: Displays the correction status of the current machine.
: Displays the current work time in relation to the guideline for when collet maintenance is required. The display changes as shown below as the time when maintenance is required approaches.
| Closeness to maintenance | Window display |
|---|---|
| 0% |  |
| 1 to 89% |  |
| 90 to 99% |  |
| 100% |  |
