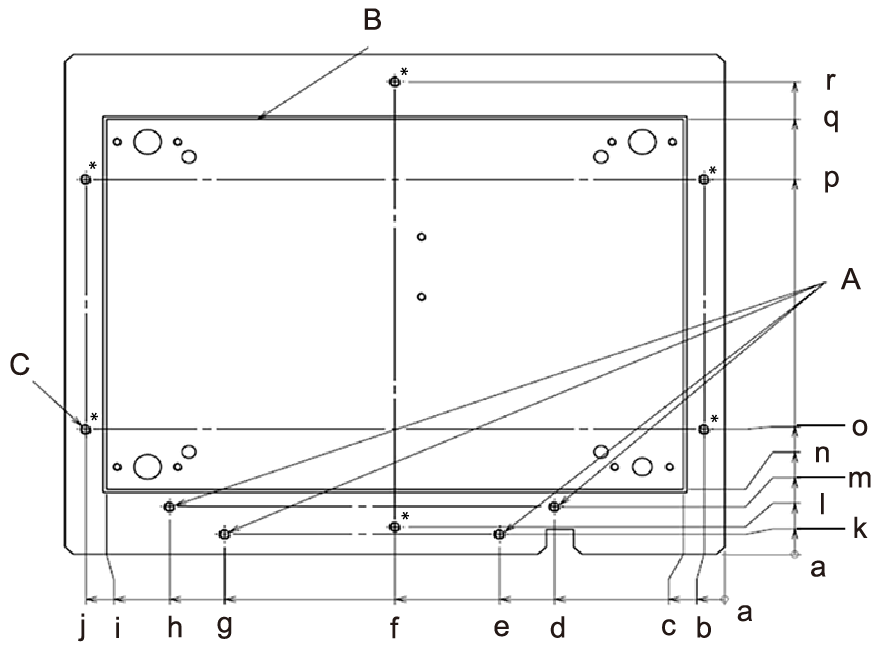

Flat Table Dimensions

A: M4 holes

B: Do not use holes within the white line.

C: M4 holes (six locations marked with *)

a

0 mm (0 in.)

g

182 mm (7.17 in.)

m

19 mm (0.75 in.)

b

7.5 mm (0.30 in.)

h

202 mm (7.95 in.)

n

26 mm (1.02 in.)

c

15 mm (0.59 in.)

i

225 mm (8.86 in.)

o

50 mm (1.97 in.)

d

62 mm (2.44 in.)

j

232.5 mm (9.15 mil)

p

150 mm (5.9 in.)

e

82 mm (3.23 in.)

k

8 mm (0.31 in.)

q

174 mm (6.85 in.)

f

120 mm (4.72 in.)

l

11 mm (0.43 in.)

r

189 mm (7.44 in.)

Feedback

A: M4 holes They can be used for securing a jig.
B: Do not use holes within the white line.
C: M4 holes (six locations marked with *) They can be used for securing a jig.
a	0 mm (0 in.)	g	182 mm (7.17 in.)	m	19 mm (0.75 in.)
b	7.5 mm (0.30 in.)	h	202 mm (7.95 in.)	n	26 mm (1.02 in.)
c	15 mm (0.59 in.)	i	225 mm (8.86 in.)	o	50 mm (1.97 in.)
d	62 mm (2.44 in.)	j	232.5 mm (9.15 mil)	p	150 mm (5.9 in.)
e	82 mm (3.23 in.)	k	8 mm (0.31 in.)	q	174 mm (6.85 in.)
f	120 mm (4.72 in.)	l	11 mm (0.43 in.)	r	189 mm (7.44 in.)
