7. Limit the print heads used for printing.

Procedure
  1. Check for the nozzle group with dot drop-out or dot displacement by viewing the results of the printing test.
    "1" or "2" is the nozzle group. The following shows a dot drop-out in nozzle group 2.


    MEMO:

    If the printing-test results are difficult to interpret

    Check the results in a bright location, changing your line of vision. They are visible using the reflection of the light.

  2. Start VersaWorks.
  3. Click Printer - Printer Settings.
    The Printer Settings dialog box appears.
  4. From the Printer List, select the printer whose print heads will be limited.
  5. Click Advanced.

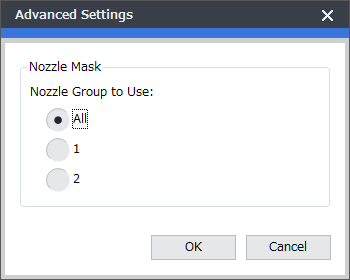

    The Advanced dialog box appears.
  6. Select the print heads to use in printing from the printing-test results.


  7. Click OK.
    Close the Advanced dialog box.
  8. Click OK.
  9. Close the Printer Settings dialog box.
  10. The icon is displayed on top of the image of the printer whose setting has been changed.
