* The screenshots show an example of Illustrator CC 2015, but the operation procedure is the same for other versions.

Procedure

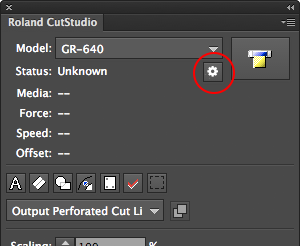

  1. On the palette, click .

    If  is not displayed, refer to "Configuring Cutting Settings from a Computer" and configure the settings.

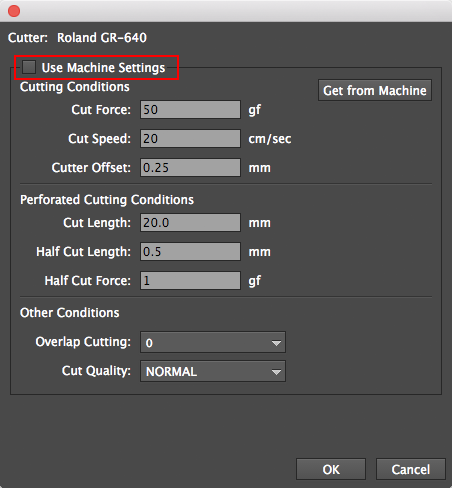

  2. Clear the Use Machine Settings check box.

    You can now enter the values.

  3. Enter the Perforated Cutting Conditions.

    Set the length of each perforation to make in the material (the perforation length) and the length of the part that is not perforated because the blade force is reduced (the half-cut length).
    Adjust the half-cut force to suit the type of material or paper used.

    Perforation Length/Half-cut Length


       *1: Perforation length
       *2: Half-cut length

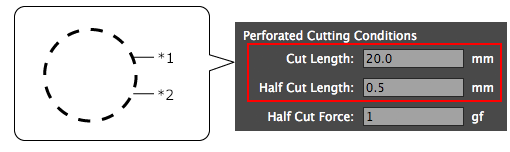

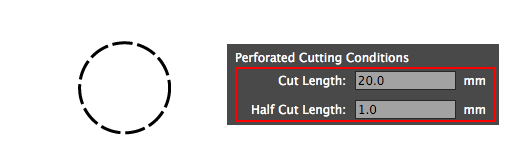

    Perforation Length > Half-Cut Length

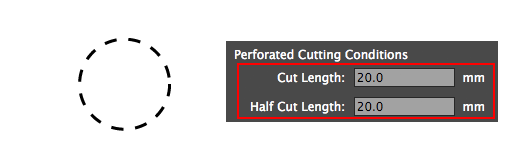

    Perforation Length = Half-Cut Length

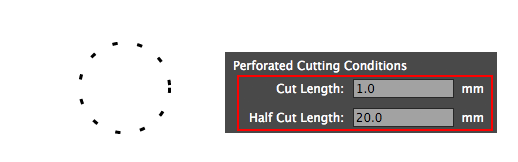

    Perforation Length < Half-Cut Length

  4. Click OK.
