* The screenshots show an example of Illustrator CC 2015, but the operation procedure is the same for other versions.

* You must install Plug-in for Illustrator before proceeding.

Procedure


  1. Start Illustrator.

  2. Open a new document, and then set the artboard.

    Set the document size to be the same as the cutting width displayed on the machine.
    Set a length that is longer than the product that you want to create.

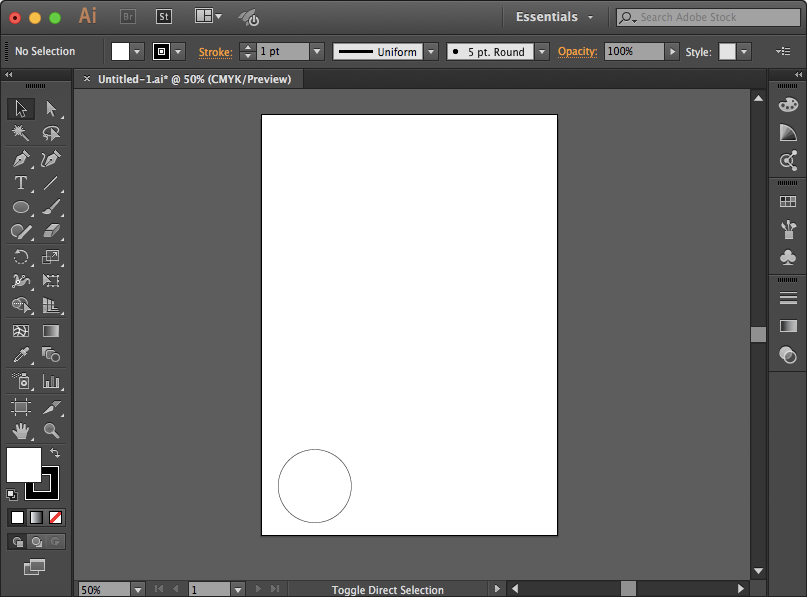

  3. Create a new design or open an existing file.

    In this example, you will create the design shown in the figure below.

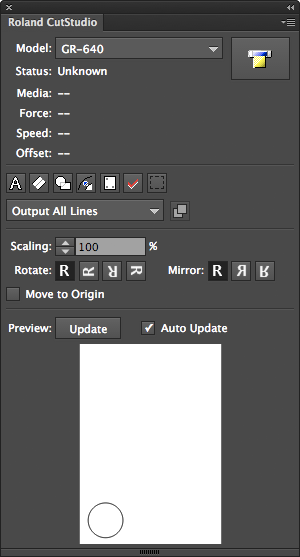

  4. From the Window menu, click Extensions, and then click Roland CutStudio.

    The Roland CutStudio palette appears.

  5. Select the object that you want to apply perforated lines to.

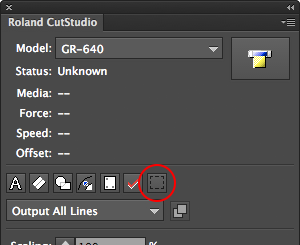

  6. Click .

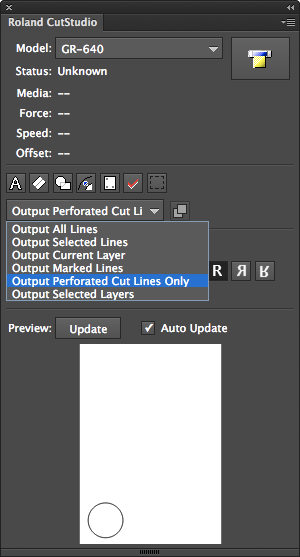

  7. Select Output Perforated Cut Lines.

  8. On the Roland CutStudio palette, click Update.

    Check that the cutting line that you wish to output is shown on the preview screen.
