CAUTION

Never touch the cutting carriage while output is in progress.
The cutting carriage moves at high speed. Coming into contact with the moving carriage may cause injury.

Procedure

Make sure the material is loaded in the machine.



  1. Click .

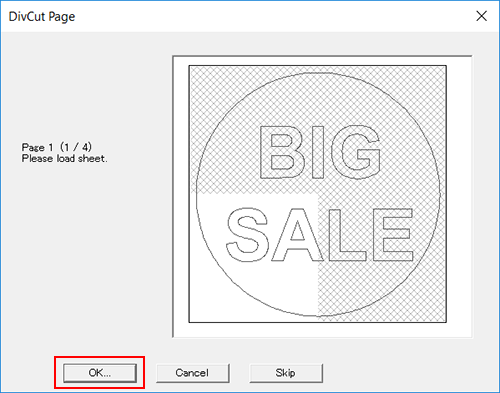

  2. Click OK.

  3. Click OK.

    Cutting starts.

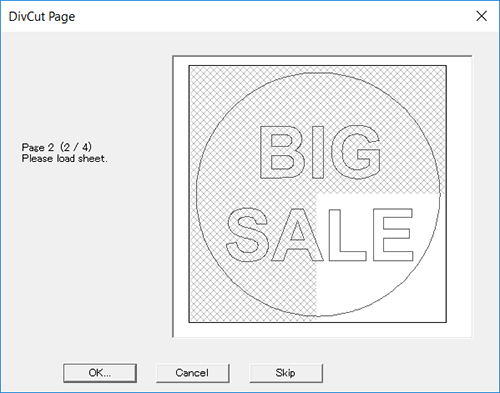

    When cutting finishes, the message shown below will be displayed.

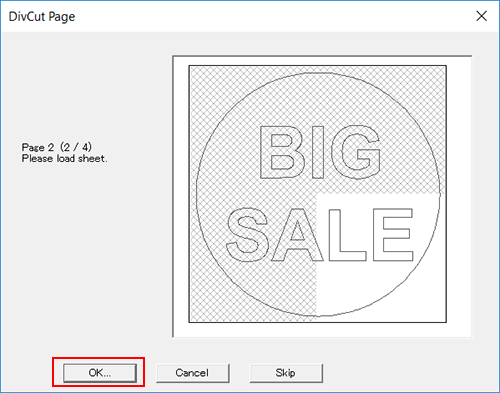

  4. Click OK.

    If you are using flat material, load new material before you click OK.

    Cutting starts.

  5. Repeat steps 3 and 4 in this procedure.

    Output the set number of tiles.

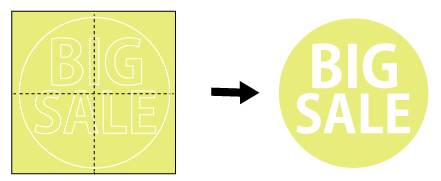

  6. Combine the output material.

    Align the margins to complete the procedure.
