Step 1: Set the Printing and Cutting Areas

Procedure

1. Start CorelDRAW, and then open a new document.

   Set the document size.

2. Click the plug-in's start button on the toolbar.

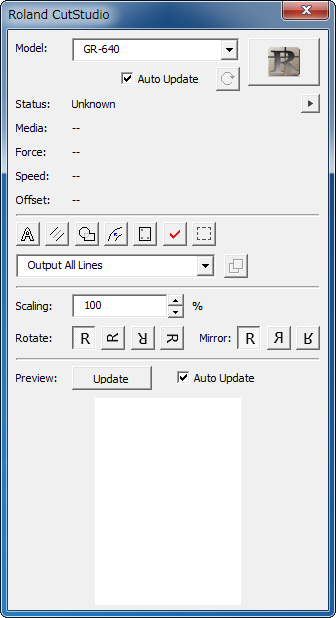

   The Roland CutStudio palette appears.



3. On the palette, click .

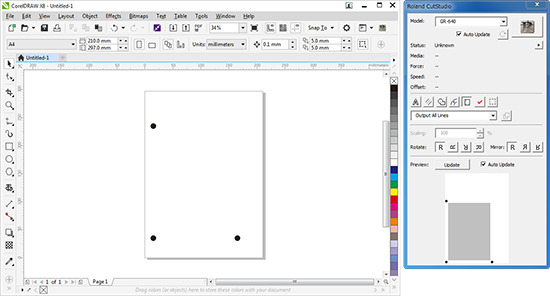

   Crop marks are inserted in the document.



4. Click , and then click Crop marks.

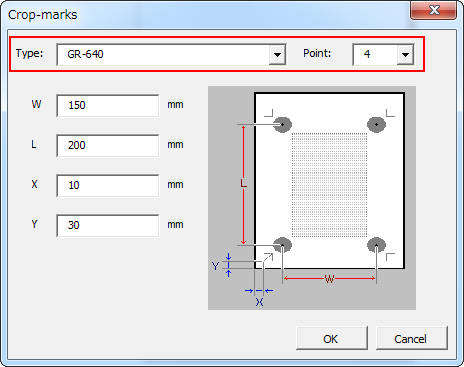

5. In the Type list, select GR-640/540/420. In the Point list, select 4.



   Point: Set the number of crop marks.

6. Set the margins, and then click OK.
