Step 1: Set the Printing and Cutting Areas

Procedure

1. Start Illustrator and open a new document.

   Set the artboard.

2. From the Window menu, click Extensions, and then click Roland CutStudio.



   The Roland CutStudio palette appears.



3. On the palette, click .

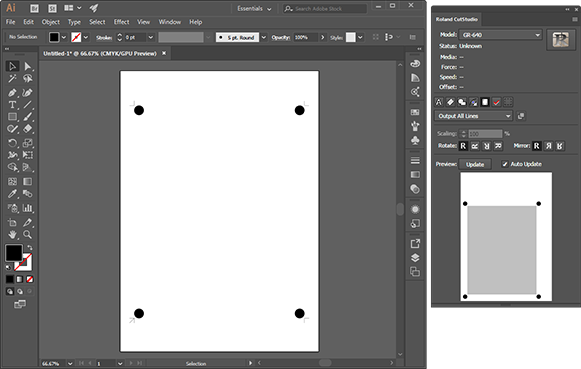

   Crop marks are inserted in the artboard.



4. Click , and then click Crop marks.



5. Select the model name from the Type list, and then select 4 from the Point list.



   Point: Set the number of crop marks.

6. Set the margins, and then click OK.
