Step 1: Set the Printing and Cutting Areas

Procedure

1. Perform preparations for cutting.

   Click the link below and perform the procedures from "Loading Roll Material" to "Setting the Origin."

   • Loading Roll Material

2. Start Illustrator.

3. Open a new document, and then set the artboard.

   Set the document size to be the same as the cutting width displayed on the machine.



4. From the Window menu, click Extensions, and then click Roland CutStudio.

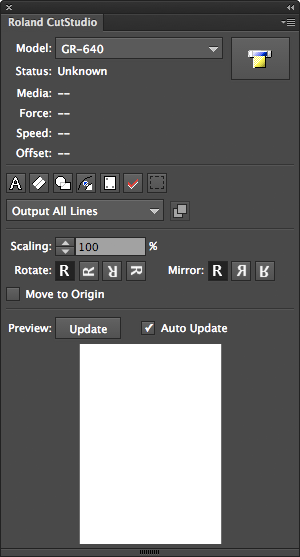

   The Roland CutStudio palette appears.



5. On the palette, click .

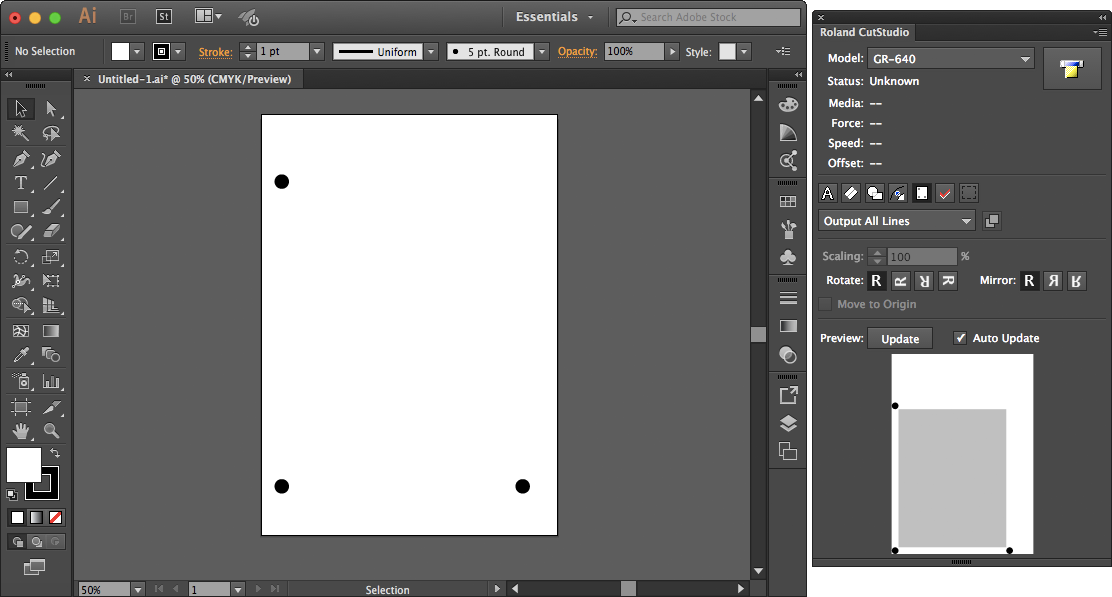

   Crop marks are inserted in the artboard.

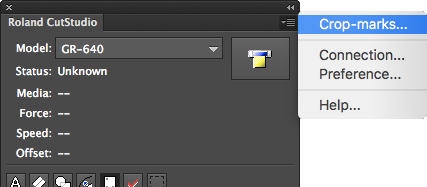

6. Click , and then click Crop marks.

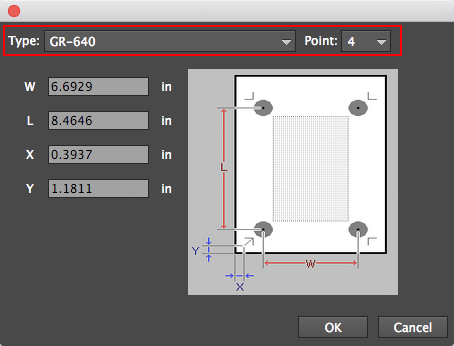

7. Select the model name from the Type list, and then select 4 from the Point list.



   Point: Set the number of crop marks.

8. Set the margins, and then click OK.
   • Setting the Margins and the Distance between Crop Marks

• Step 2: Position the Sample Data
