Printing and Cutting Sample Data
We recommend that you get comfortable with the printing and cutting procedure by using the sample data first.
In this procedure, you will create the sticker shown below.
Items Required Other than the Machine
 |
 |
 |
| Printer | Material (210 x 298 mm) | Sample data |
 |
||
| A computer on which Illustrator and Plug-In for Illustrator are installed | ||
Printer Requirements
You must use a laser or inkjet printer with a resolution of 720 dpi or greater.
If the printed filled sections are blurred, crop marks will not be read correctly.

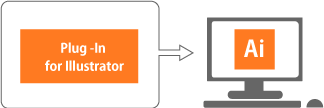

Plug-In for Illustrator
Be sure to install this program.
Material
- Materials That Can Be Used for Printing and Cutting
This example uses A4-size material.
Sample Data
Use Sample.bmp, which is found in the CutStudio folder under Applications.
