CAUTION

Never touch the cutting carriage while output is in progress.
The cutting carriage moves at high speed. Coming into contact with the moving carriage may cause injury.

* The screenshots show an example of Illustrator CC 2015, but the operation procedure is the same for other versions.

You must install Plug-in for Illustrator before proceeding.

Procedure


  1. Start Illustrator.

  2. In Illustrator, click Extensions > Roland CutStudio from the Window menu.

    The "Roland CutStudio" palette appears.

  3. Create a new file and create a new design or open an existing file.

    In this example, you will create the design shown in the figure below. Change the characters to outline data.

    When you select characters and click on the palette, the characters change to outline data.

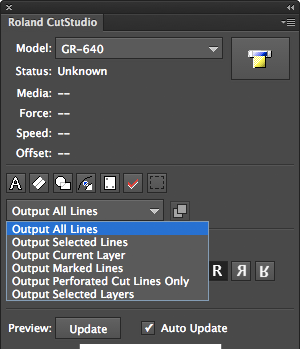

  4. Select Output All Lines.

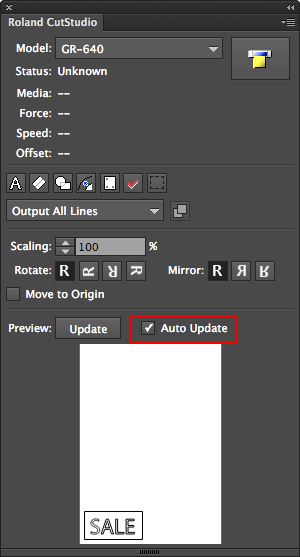

  5. On the Roland CutStudio palette, select the Auto Update check box.

    Check that the cutting line that you wish to output is shown on the preview screen.

  6. Click .

    The following dialog box appears.


  7. Select the model name of the machine on hand, and then click Cut.

    The cutting data is output.
