| Product name | GR-640 |
GR-540 |
GR-420 |
|
|---|---|---|---|---|
| Drive system | Digital control servo motor |
|||
| Cutting mechanism | Media-moving method |
|||
| Acceptable material widths | 156 to 1,802 mm |
156 to 1,548 mm |
156 to 1,224 mm |
|
| Separatable material width | 0 to 1,750 mm |
0 to 1,496 mm |
0 to 1,172 mm |
|
| Usable tools | Roland CAMM-1 series blade (including blades for flatbed use) |
|||
| Maximum cutting speed | During cutting: 1,050 mm/sec. (all directions) With blade raised: 1,485 mm/sec. (45° direction) |
|||
| Cutting speed | 10 to 1,050 mm/sec. (settable in steps of 10 mm/sec.) |
|||
| Blade force | 20 to 600 gf |
|||
| Mechanical resolution | 0.005 mm/step |
|||
| Software resolution | 0.025 mm/step |
|||
| Distance accuracy (*1) | Error of less than ±0.2% of distance traveled or 0.1 mm, whichever is greater |
|||
| Repetition accuracy (*1)(*2)(*3) | 0.1 mm or less |
|||
| Interface | Ethernet (automatic switching between 10BASE-T and 100BASE-TX), USB 2.0 (FULL SPEED compliant) |
|||
| Replot memory | 2 MB (buffer size: 8 MB) |
|||
| Command system | CAMM-GLⅢ |
|||
| Power supply | AC 100 to 240 V ±10%, 50/60 Hz, 0.7 A |
|||
| Power consumption | Approx. 70 W |
|||
| Operating noise | During operation | 67 dB (A) or less |
||
| During standby | 43 dB (A) or less |
|||
| External dimensions | 2,165 mm (width) × 740 mm (depth) × 1,190 mm (height) |
1,910 mm (width) × 740 mm (depth) × 1,190 mm (height) |
1,650 mm (width) × 740 mm (depth) × 1,190 mm (height) |
|
| Weight | 93.5 kg (206.1 lb.) |
87 kg (191.8 lb.) |
78 kg (172.0 lb.) |
|
| Packed dimensions | 2,300 mm (width) × 565 mm (depth) × 770 mm (height) |
2,050 mm (width) × 565 mm (depth) × 770 mm (height) |
1,740 mm (width) × 565 mm (depth) × 770 mm (height) |
|
| Packed weight | 128 kg (282.2 lb.) |
118 kg (260.2 lb.) |
108 kg (238.1 lb.) |
|
| Environmental | Temperature: 5 to 40°C, humidity: 35%RH to 80%RH (no condensation) |
|||
| Included items | Power cord, power cord adapter, USB cable, cable clamp, blade holder/blade/pin, alignment tool, separating knife replacement blade, exclusive stand (for details, see the setup guide), setup guide |
|||
*1: According to material and cutting conditions as specified by Roland DG Corporation
*2: Excluding expansion/contraction of the material
*3: [Range for assured repetition accuracy]
For material with a width exceeding 610 mm: Length 4,000 mm
For material with a width of 610 mm or less: Length 8,000 mm

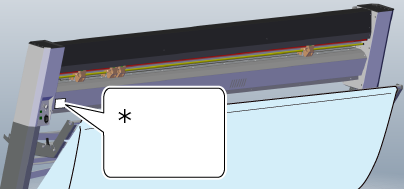

Locations of the Power Rating and Serial Number Labels
The serial number is required for maintenance, servicing, and support. Never peel off the label.
Also, use a power supply that meets the requirements for voltage, frequency, and amperage given on the label.
 |
|
| *: Serial number and power rating label |
