Step 3: Set Tiled Output Conditions

Procedure

1. Start CutStudio.

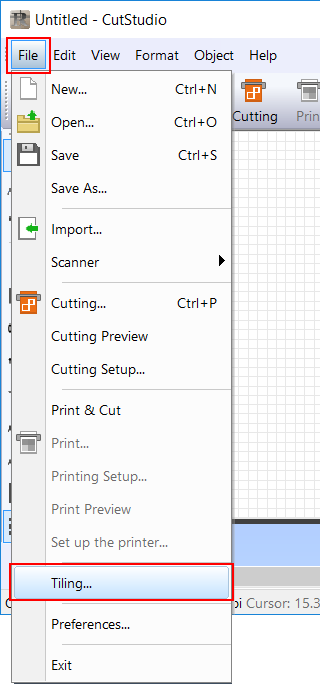

2. From the File menu, click Tiling.



   The Tiling dialog box is displayed.

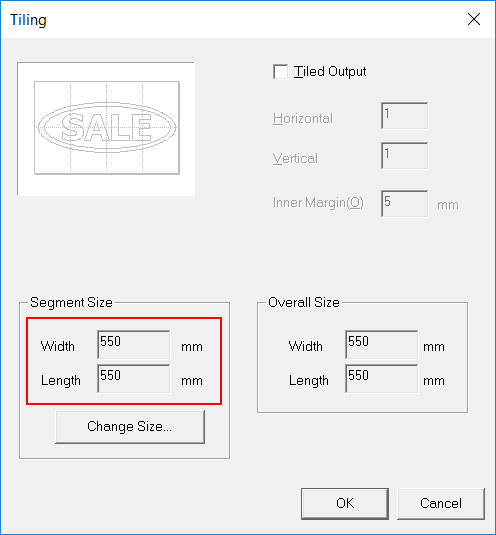

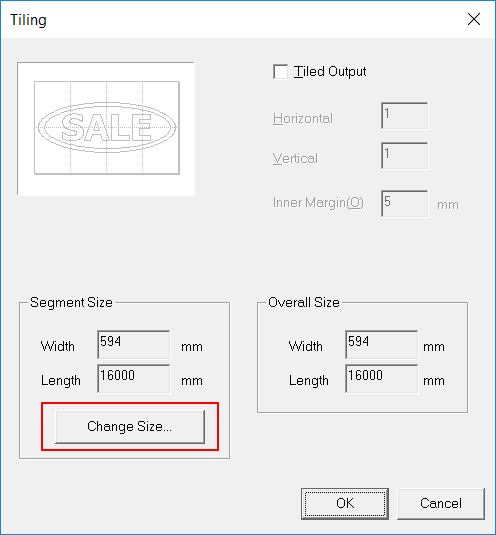

3. Click Change Size.

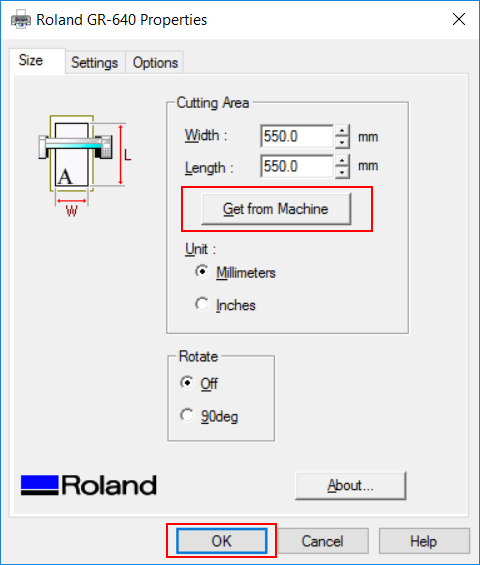

4. Click Get from Machine.

   The cutting area is entered automatically. Once the cutting area has been entered, click OK.



   The segment size is updated.

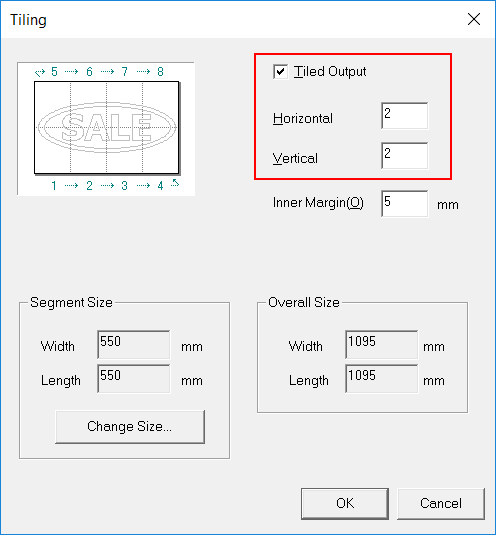

5. Select the Tiled Output check box, and then enter the number of tiles.

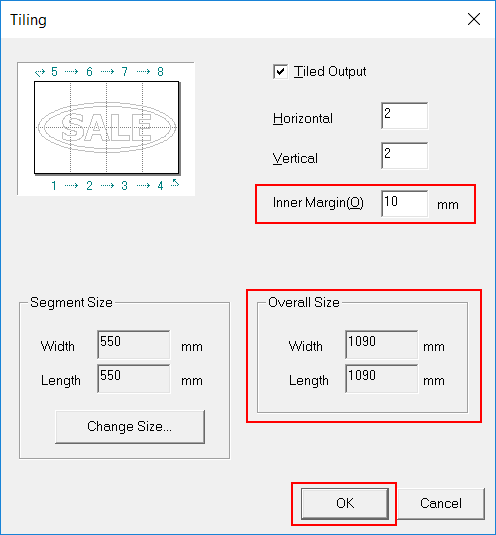

6. Enter a value for the inner margin, then click OK.

   To enter a value for the inner margin, the overall size is updated automatically.

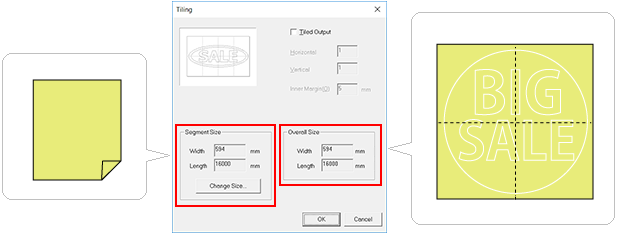

   Make sure Overall Size is larger than the size of the data determined in Step 1.

   • Inner Margin Function

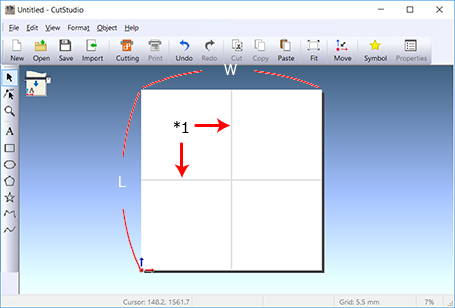

   The document is displayed.
   The edges of the segments are displayed even if an inner margin has not been set.


   W: Overall Size width L: Overall Size length *1 Inner margin
